Spesifikasi Yamada AODD Pump

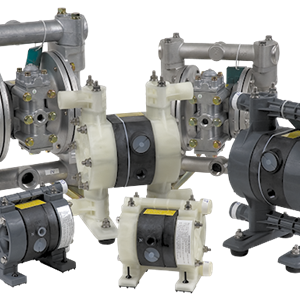

YAMADA Pump, Reciprocating, Diaphragm, NDP 50 BAHYamada AODD Pump

Alat Laboratorium Umum

Intake & Discharge Connections
Polypropylene (PPG): 2" ANSI Flange B16.5 #150
Kynar® (PVDF): 2" ANSI Flange B16.5 #150
Aluminum (ADC-12): 2" ANSI Flange B16.5 #150 (with tapped 2" Female NPT)
Stainless Steel (316): 2" ANSI Flange B16.5 #150 or 2" Female NPT
Cast Iron: 2" Female NPT
Air Inlet
3/4" Female NPT (includes ball valve)
Air Exhaust
1" Female NPT (includes silencer)
Maximum Liquid Temperature*
Diaphragm Material / Temperature
Buna N: 180°F (82°C)
Neoprene: 180°F (82°C)
Santoprene® (TPO): 180°F (82°C)
EPDM: 212°F (100°C)
PTFE: 212°F (100°C)
Hytrel® (TPE): 248°F (120°C)
Viton® fluoroelastomer: 248°F (120°C)
*Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. Kynar® pumps have a maximum temperature of 248°F (120°C) when fitted with Hytrel® or Viton® diaphragms.
Air Supply Pressure (All Models)
20 to 100 PSI (1.4 to 7 kgf/cm²)
Discharge Volume Per Cycle
Rubber diaphragm: 1.14 gallons (4.3 liters)
PTFE diaphragm: 0.55 gallons (2.1 liters)
Maximum Cycles Per Minute
Rubber diaphragm: 146
PTFE diaphragm: 220
Maximum Size Solid
5/16" (8 mm)
Maximum Dry Suction Lift
Rubber-fitted pump capability: 19-feet
Air Motor
Standard: Aluminum
Optional Coating
PTFE-coated
Weight and Dimensions
:: Aluminum
:: Polypropylene
:: Kynar® (PVDF)
:: Cast Iron
:: Stainless Steel
