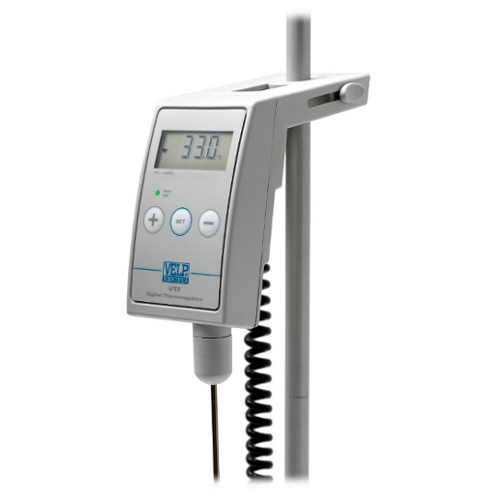

VTF Digital Thermoregulator
Accurate Control
- Fuzzy Logic technology, ideal for precise thermoregulation
- Provides direct temperature control of higher accuracy
- Incorporates timer for unsupervised operation and increased productivity
- Automatically adjusts thermoregulation for power, load and thermal dispersion
- Ensures control accuracy of ± 0.5 °C
- Designed for the longest lifespan and guaranteed by 3 years warranty
Versatile & Practical
- Ready for immediate use
- Twin clamps for height and horizontal adjustment of position
- Direct connection to the hot plate stirrers AREX, AREC.X and AREX Digital (PRO version), AREX-6 Digital (PRO version)
- Can be combined with the most common hot plate stirrers
- Also usable with heating devices such as water and oil baths, heating plates, etc.
Efficient System
- Inclined control panel for easy access and visibility
- Can be used with AluBlocks™
Recommendations
- Check if PW 10 Derivation Element is needed to be used with non-VELP devices
| GENERAL FEATURES | |
| Construction material: | technopolymer |
| Clamping on rods: | from Ø 10 to Ø 13 mm |
| Stainless steel probe type Pt 100: | 250 mm lenght and Ø 3 mm |
| Display: | LCD |
| Protection rating CEI EN 60529: | IP 54 |
| Power supply: | 12 V dc |
| Weight: | 0.3 Kg ( 0.7 lb) |
| Dimensions (WxHxD): | 75x145x120 mm (3x5.7x4.7 in) |
| PERFORMANCE | |
| Thermoregulation range: | -10...+300 °C |
| Precision: | ± 0.5 °C |
| Resolution: | 0.2 °C |
| Working time | from 0:00 to 24:59 (h:min) |
| Remaining time reading: | possible |
| Visualization of the maximum temperature reached: | possible |
| SAFETY DEVICES | |
| Display visualization and automatic stop of the heating plate in case of: | |
| - Damaged probe | |
| - Interrupted probe | |
