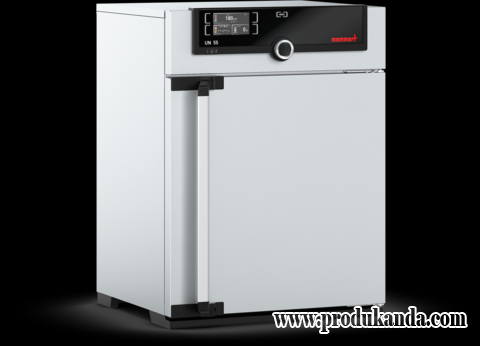

MEMMERT Universal Oven UN55
Pengiriman :
1 hari sejak pembayaran
Lokasi :
DKI Jakarta - Jakarta Pusat
Update Terakhir :
08-08-2018 11:48
Dapatkan Spesifikasi Harga
MEMMERT Universal Oven UN55 Produk Terbaik dari
PT. ANDALAN BANGUN SEJAHTERA Importir dan Distributor Peralatan Laboratorium dan Alat Uji Ukur
Detail Produk
Temperature
| Set temperature range in °C |
min. 5°C above ambient up to +300°C |
| resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED) |
Control of standard components
| Temperature |
1 Pt100 sensor DIN class A in 4-wire-circuit |
| ControlCOCKPIT |
adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display |
Control technology
| Timer |
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
| Function SetpointWAIT |
the process time does not start until the set temperature is reached |
| Calibration |
three freely selectable temperature values |
| Language setting |
German/English/Spanish/French |
| adjustable parameters |
temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime |
Ventilation
| natural convection |
| Fresh air admixture |
adjustment of pre-heated fresh air admixture by air flap control in 10 % steps |
| Vent |
vent connection with restrictor flap |
Communication
| Documentation |
programme stored in case of power failure |
| Programming |
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). |
Standard equipment
| Scope of delivery |
incl. works calibration certificate for +160°C |
| Door |
fully insulated stainless steel door with 2-point locking (compression door lock) |
| Interior |
easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Internals |
1 stainless steel grid |
Stainless steel interior
| Max. loading of chamber: |
80 kg |
| Dimensions W x H x D in mm |
w(A) x h(B) x d(C): 400 x 400 x 330 mm |
| Volume |
53 l |
Textured stainless steel casing
| Housing |
rear zinc-plated steel |
| Dimensions |
w(D) x h(E) x d(F): 585 x 784 x 514 mm |
Electrical data
| Voltage Electrical load |
230 V, 50/60 Hz
approx. 2000 W |
| Voltage Electrical load |
115 V, 50/60 Hz
approx. 1700 W |
Packing/shipping data
| the appliances must be transported upright |
| Customs tariff number |
8419 8998 |
| Country of origin |
Federal Republic of Germany |
| WEEE-Reg.-No. |
DE 66812464 |
| Dimensions approx incl. carton |
B x H x T: 730 x 950 x 670 mm |
| Net weight |
approx. 57 kg |
| Gross weight carton |
approx. 76 kg |
Safety
| Temperature control |
adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
| Autodiagnostic system |
for fault analysis |
