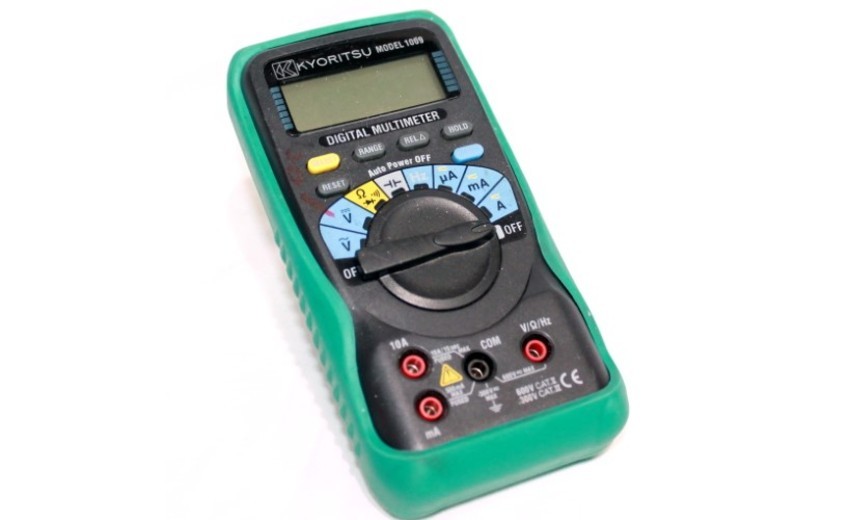

KYORITSU – 1009

Harga :

CALL

Merk :

Kyoritsu

Pengiriman :

1 hari sejak pembayaran

Lokasi :

DKI Jakarta - Jakarta Pusat

Dilihat :

133 Kali

Update Terakhir :

09-08-2018 12:44

Dapatkan Spesifikasi Harga KYORITSU – 1009 Produk Terbaik dari PT. ANDALAN BANGUN SEJAHTERA Importir dan Distributor Peralatan Laboratorium dan Alat Uji Ukur

Detail Produk

Product Description

Display : 4000 counts.
Auto range and manual range selector provided. (with range hold feature)
Resistance range provides audible continuity test.
Automatically turns power off in about 30 minutes to conserve battery life.
Direct current measurement up to 10A AC and DC.
With Holster.

Specification

DC V	400mV/4/40/400/600V (Input Impedance 10MΩ) \|±0.6%rdg±4dgt (400mV/4/40/400V) \|±1.0%rdg±4dgt (600V)
AC V	400mV/4/40/400/600V (Input Impedance 10MΩ) \|±1.6%rdg±4dgt (20 – 400mV) \|±1.3%rdg±4dgt (4/40V) \|±1.6%rdg±4dgt (400/600V)
DC A	400/4000µA/40/400mA/4/10A \|±2.0%rdg±4dgt (400/4000µA) \|±1.0%rdg±4dgt (40/400mA) \|±1.6%rdg±4dgt (4/10A)
AC A	400/4000µA/40/400mA/4/10A \|±2.6%rdg±4dgt (400/4000µA) \|±2.0%rdg±4dgt (40/400mA/4/10A)
Ω	400Ω/4/40/400kΩ/4/40MΩ \|±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) \|±2.0%rdg±4dgt (40MΩ)
Continuity buzzer	400Ω (Buzzer sounds below 70Ω)
Diode Test	1.5V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test	40/400nF/4/40/100µF
Frequency	5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY	0.1 – 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Withstand Voltage	AC 3700V / 1min.
Applicable standards	IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326
Power Source	R6 (1.5V) × 2
Dimensions	161(L) × 82(W) × 50(D)mm
Weight	Approx. 280g
Accessories	7066A (Test leads) 8919 (Ceramic fuse [10A/600V])× 1 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual
Optional	7234 (Crocodile clip test lead) 9095 (Carrying case)
