Description

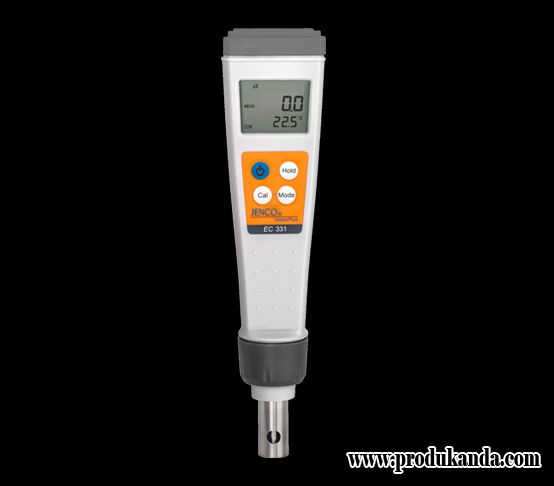

Jenco EC331 is an easy to use, IP67 rated conductivity tester with resistivity and temperature readout. Key features include dual display of conductivity or resistivity with temperature, selectable or auto ranging, replaceable conductivity cell and IP67 rated body.This tester is RoHS compliant.
- Large display screen- displays conductivity / Resistivity and temperature at the same time
- Convenient one point calibration
- SS316 stainless steel replaceable electrode module
- Replaceable electrode module ensures extended usefulness
- Battery life over 100 hours
- Low battery indicator
- IP67 waterproof housing
- Temperature reading in °C and °F, user selectable
- RoHS compliant
Specifications
Conductivity Range
0 to 19.9 uS
Conductivity Resolution
0.1 uS
Conductivity Accuracy
±1% FS
Resistivity Range
1.0 to 20.0 MΩ
Resistivity Resolution
0.1 MΩ
Resistivity Accuracy
±1% FS
Temperature Range (°C)
0.0 to 99.5 °C
Temperature Resolution (°C)
0.5 °C
Temperature Accuracy (°C)
± 0.5 °C
Temperature Range (°F)
32 to 212 °F
Temperature Resolution (°F)
1 °F
Temperature Accuracy (°F)
± 1 °F
Temperature Compensation
0.0 to 60.0 °C
Calibration
1 point (147 uS at 0.1~199.9 uS range)
Electrode Type
Two wire conductivity cell
Cell Constant
1.0
ATC
Thermistor, 10KΩ, at 25 °C.
Display
LCD
Power
LR44 x 4 batteries
Battery Life
>100 hours
Auto Power Off
After 10 minutes of inactivity
Case
IP-67 dust-proof and water-proof up to 1 meter
Weight
105 grams (Including batteries)
Dimensions (W x D x H)
193 x 44 x 25 mm
Accessories
Conductivity / Resistivity electrode module
