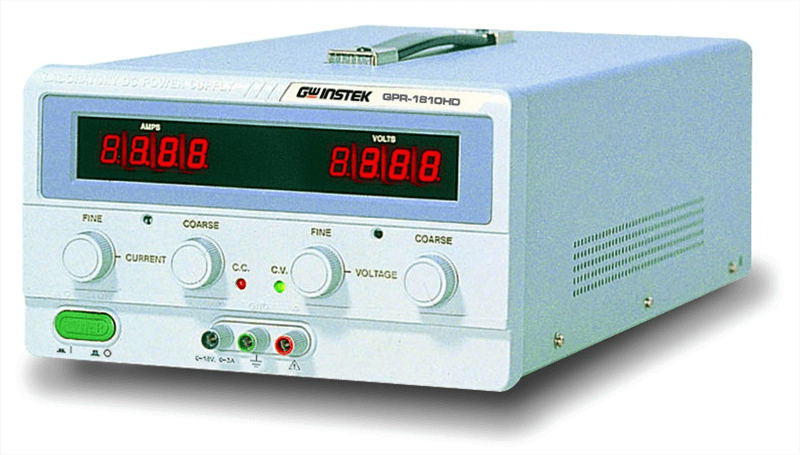

GW INSTEK GPR M Series

The GPR-M Series are single output, 180W, linear DC power supplies, featuring all the same functions as the GPR-H Series but for lower power demands. Like the GPR-H Series, the GPR-M Series are suitable for high-end precision bench top applications. Low load and line regulation for both constant voltage and constant current mode ensure reliable, predictable output. Overload and reverse polarity protection as well as internal selection for dynamic or constant load are standard.

SELECTION GUIDE

Output Watts (W)
Output Volts (V)
Output Amps (A)
Weight (kg)
GPR-1810HD
180W
0 ~ 18
0 ~ 10
11.5
GPR-3060D
180W
0 ~ 30
0 ~ 6
11.5
GPR-6030D
180W
0 ~ 60
0 ~ 3
11.5

DC OUTPUT

Output Volts (V)
Output Amps (A)
GPR-1810HD
0 ~ 18
0 ~ 10
GPR-3060D
0 ~ 30
0 ~ 6
GPR-6030D
0 ~ 60
0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation Line regulation < 0.01% + 3mV
Load regulation <0.01% + 5mV (<10A)
Load regulation < 0.02% + 5mV (>10A)
Ripple & Noise < 1mVrms (5Hz ~ 1MHz)
Recovery Time < 100μS ( 50% load change, minimum load 0.5A )
Output range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation Line regulation < 0.2% + 3mA
Load regulation <0.2% + 3mA
Ripple Current < 3mArms
Output Range 0 to rating current continuously adjustable
METER
Type 3 1/2 Digits 0.5" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
  AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
  User manual x 1
Power cord x 1
Test Lead GTL-104 x 1
DIMENSIONS & WEIGHT
  255(W) x 145(H) x 335(D)mm
Approx. 11.5kg
